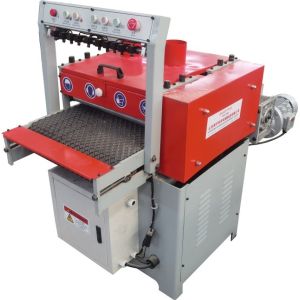

Infrared Multiple Wood Multi Blade Rip Saw Machine Circular Saw

Brand Name : SH

Model Number : HW500, HW800, ZHW800-70, ZHW800-80, ZHW800-100

Certification : ISO9001

Place of Origin : Shandong Province, China

MOQ : 1 set

Price : US $2,788 - 4,788/ Set

Payment Terms : Western Union, L/C, T/T

Supply Ability : 1000sets/year

Delivery Time : within 15 days

Packaging Details : iron made frame packing

Name : multi ripsaw for edge sawing

Sawing max. width : 500mm

Sawing max. thickness : 50mm

Blade QTY : 1-5pcs

Function : with infrared positioning

Usage : sawing planks into small pcs

Feeding : Automatic

Carbide blade diameter : 210mm , 280mm, 305mm, 355mm

Application wood : hardwood logs and softwood

Guarantee : 1 year

Contact Now

Small Multi Blade Rip Saw for log edges cutting, Board Edger Saw Machine

Multi Blades Rip Saw

Introduction:

with Infrared positioning
for board edges cutting
sawing planks into small pcs
easy usage, no installation

Technical data :

Model	HW500	HW800
Sawing thickness	15-50mm	15-50mm
Sawing width	500mm	800mm
Circular blade diameter	230mm	230mm
Electric motor	15KW	18.5KW
Blade qty	1P-6P	1P-10P
Rotation speed	3500/min	3500/min

Photos:

Infrared Multiple Wood Multi Blade Rip Saw Machine Circular Saw

Heavy Duty Single Shaft Multi Blade Rip Saw / Board Edger Saw Machine

Introduction:

with Infrared positioning
for big thickness board edger cutting
high working efficiency, low cost ,fulfil the max. value of the wood
easy usage, no installation

Technical data :

Model	ZHW800-70	ZHW800-80	ZHW800-100
Sawing wood height	10-70mm	10-80mm	20-100mm
Sawing wood width	800mm	800mm	800mm
Carbide blade diameter	280mm	305mm	355mm
Main motor	22KW	30KW	37KW
Blade quantity	1P-10P	1P-10P	1P-10P
Rotation speed	3500/min	3500/min	3500/min

Infrared Multiple Wood Multi Blade Rip Saw Machine Circular Saw

Double Spindle Panel Cutting Multiple Blades Rip Saw

1.Used for Lumber/Panels/Planks Cutting

2.Max. cutting depth/thciness is upto 160mm

3.Max. cutting width is upto 400mm

4.Big motor power, fit for hardwood cutting

5.Blades is placed on up/down abrod/spindle .

6.We present one set discs on your cutting thickness

Specifications:

Multi Blades Rip Saw- For wood panels/plank cutting

Model	SH60-300	SH80-300	SH100-300	SH120-300	SH150-300
Max. Sawing width	250-300mm	250-300mm	250-300mm	250-300mm	250-300mm
Max. Sawing thickness	60mm	30-80mm	40-100mm	50-120mm	60-150mm
Motor	18.5KW/22KW	22KW*2	22KW*2	22KW*2	30KW*2
Saw Blade Diameter	150MM	180mm	210mm	230mm	255mm
Spindle Diameter	50mm	50mm	50mm	50mm	50mm
Weight	1190kg	1260kg	1420kg	1560kg	1620kg

Infrared Multiple Wood Multi Blade Rip Saw Machine Circular Saw
